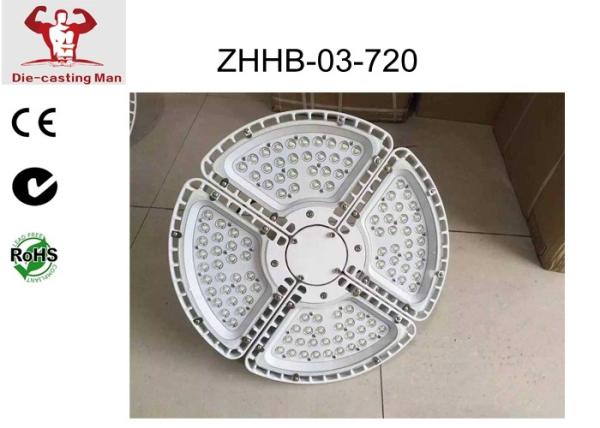

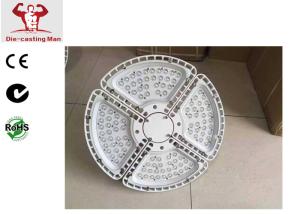

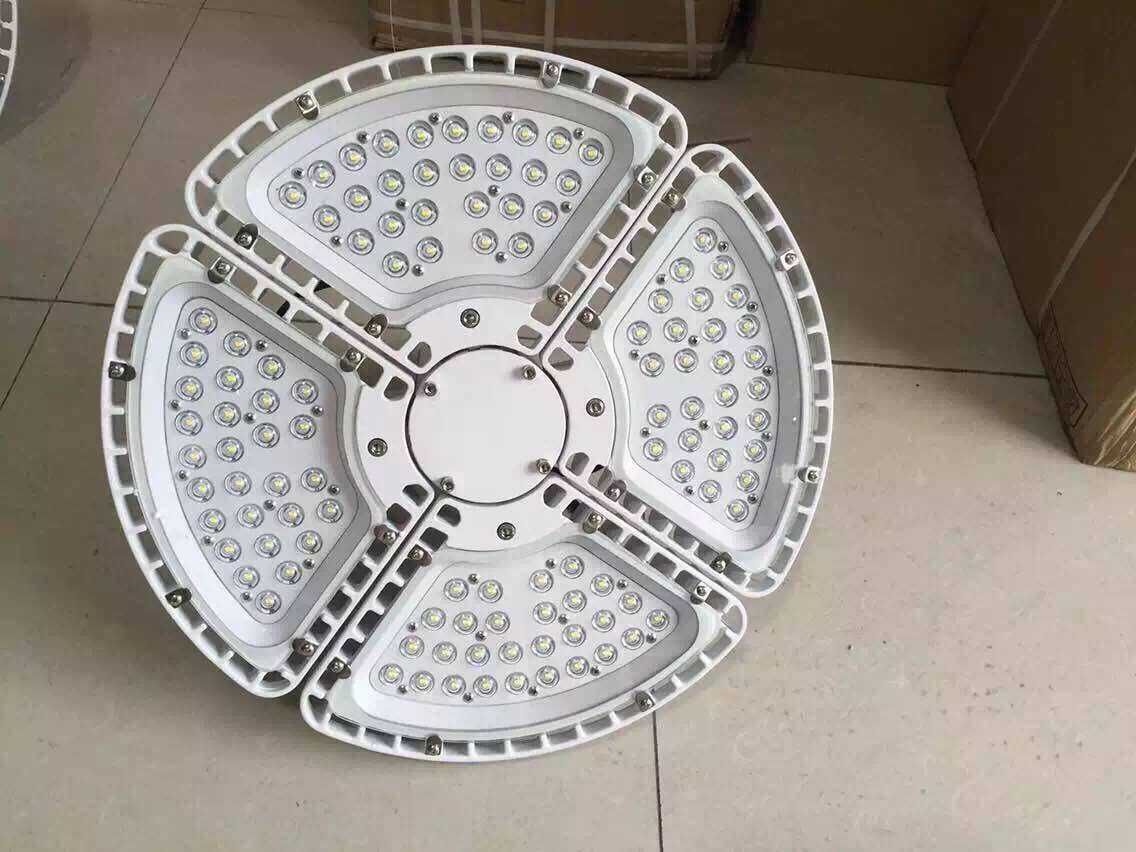

Universal Aluminum Outdoor Area Lighting Led Garden Light Fixtures For Road
Item no: ZHUB-03-720
Quick Detail:
Name | 720W Led Garden light Die casting fixture | Application | Use for Roadway |
Weight | 10000g | Feature | New Design |
Material | ADC12 | Certificate | ROHS |
Fixture Size | 720*720mm | | |
LED Engine Module
· LED life time of 30,000+ hours
· High power integrated packaging LED chips, 120° beam spread available
· Minimum CRI of 70, custom CRI available
· Operating temp: -30º C to +60º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified*
· 50-80% energy savings
· Manufactured in the China
· Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 85-265v VAC, up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing

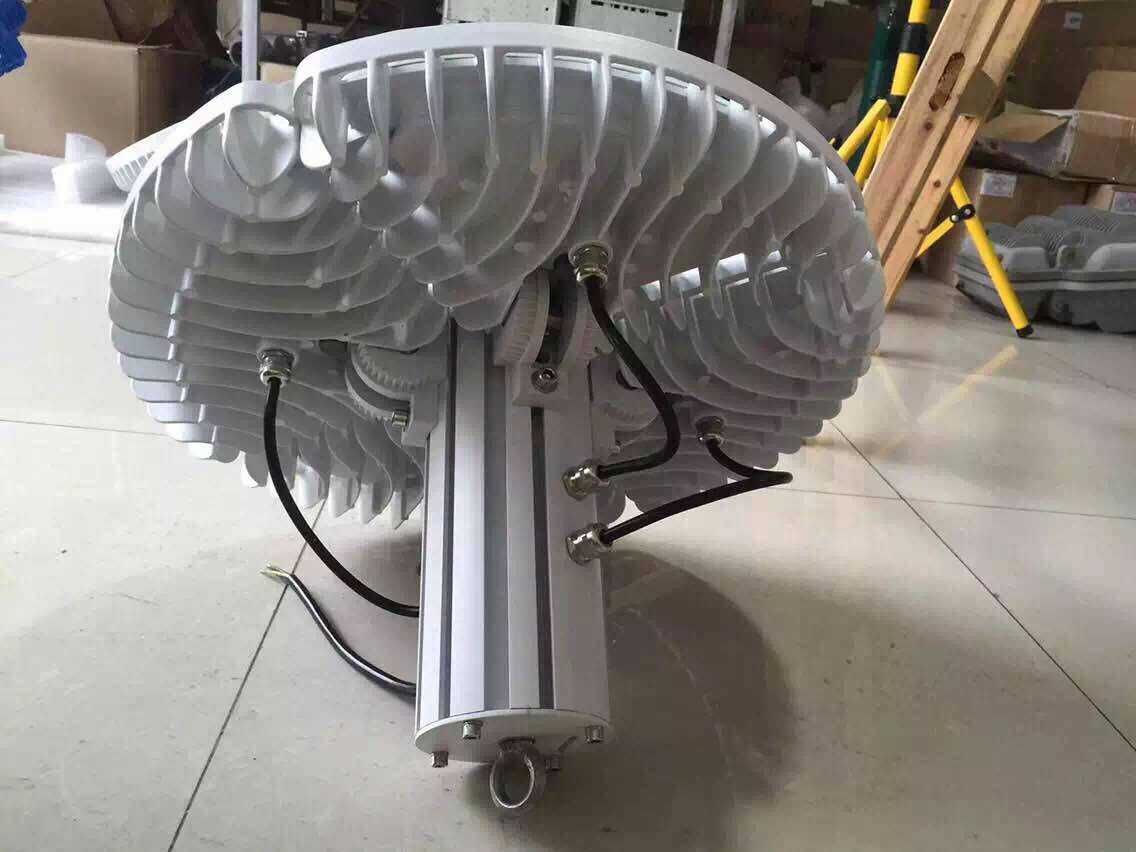

· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
Technical Specifications
Standard Voltage | 85-265V |
Watts | 720W |
Power Factor | >0.9 |
Lumen | 79200Lm |
Efficiency | 105.17Lm/w |
Fixture Efficiency | 95% |
Standard Color Temperature | 5700K |
Color Rendering Index | Ra>70 |
LED Life time | 50,000+ Hrs |
Warranty | 5 Years |
Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.
Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.
Available housing colors: Black, Grey, White.
We are a professional Die casting factory for around 30years.
If you are importing lighting fixture,of sure our company will be a good option for you since:
1)we can use the material according to your component request.
2)we are die-casting manufacturer for around 30year, we are professional on lighting design and the quality and cost control.
3)we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.
make your idea/drawing to be truth.
4)we are a lighting industrial park,so we can offer the best delivery for you.
5)we have good experience on assembling and exporting lighting fixture for around 10 years,so can offer you very good service.
Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
